AIRcable RS485
Industrial Wireless-to-RS485 Interface
FCC ID: 2AC7Z-ESP32
IC: 21098-ESP32
CE: B20042710
BQB: QDID 124871/166590
30-day money-back guarantee
Free Shipping in U.S.
Buy now, get in 2 days
Industrial ESP32-S3 Control Board
RS485 Interface
Based on AIRcable's reliable WishMesh Firmware, the ESP32-S3, Supports Wi-Fi / Bluetooth, onboard RS485 interfaces

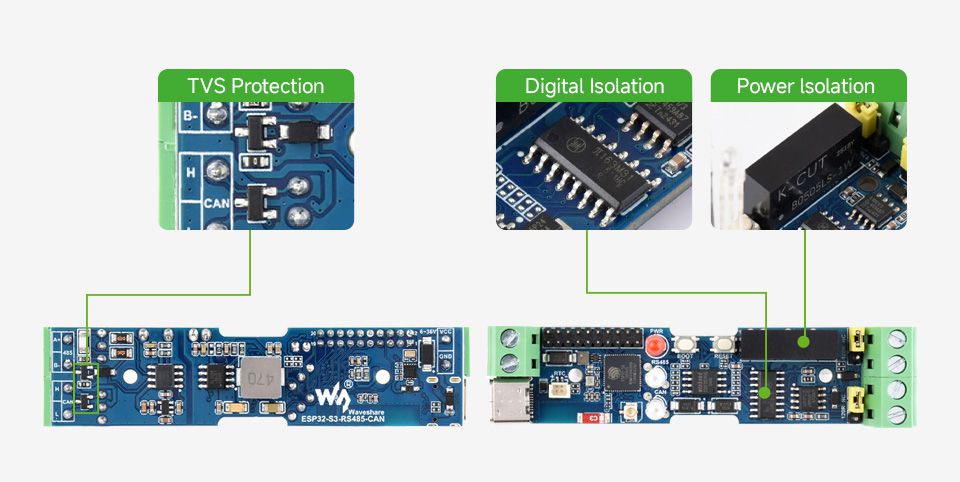

Built-in protection circuits such as power isolation and optocoupler isolation,
Safe & Stable & Reliable
Features at a glance
- AIRcable's WishMesh Firmware with Bluetooth BLE, mesh and Wifi TCP as well as Webserver
- Based on ESP32-S3 microcontroller with Xtensa 32-bit LX7 dual-core processor, capable of running at 240 MHz
- Integrated 2.4GHz Wi-Fi and Bluetooth 5 (LE) dual-mode wireless communication, with superior RF performance
- Onboard isolated RS485 interface, for connecting to various RS485 Modbus industrial modules or sensors
- Onboard isolated CAN interface for easy access to various CAN devices
- Onboard pin header for connecting external devices
- Onboard USB Type-C port for power supply, firmware downloading and debugging
- Onboard power supply screw terminal, supports 7~36V wide voltage input, suitable for industrial applications
- Onboard RTC chip, supports scheduled tasks
- Onboard digital isolation to prevent interference from external signal
- Onboard unibody power supply isolation, providing stable isolated voltage, no extra power supply is required for the isolated terminal
- Onboard RS485 TX/RX indicators and CAN indicator for monitoring the operating status of the module

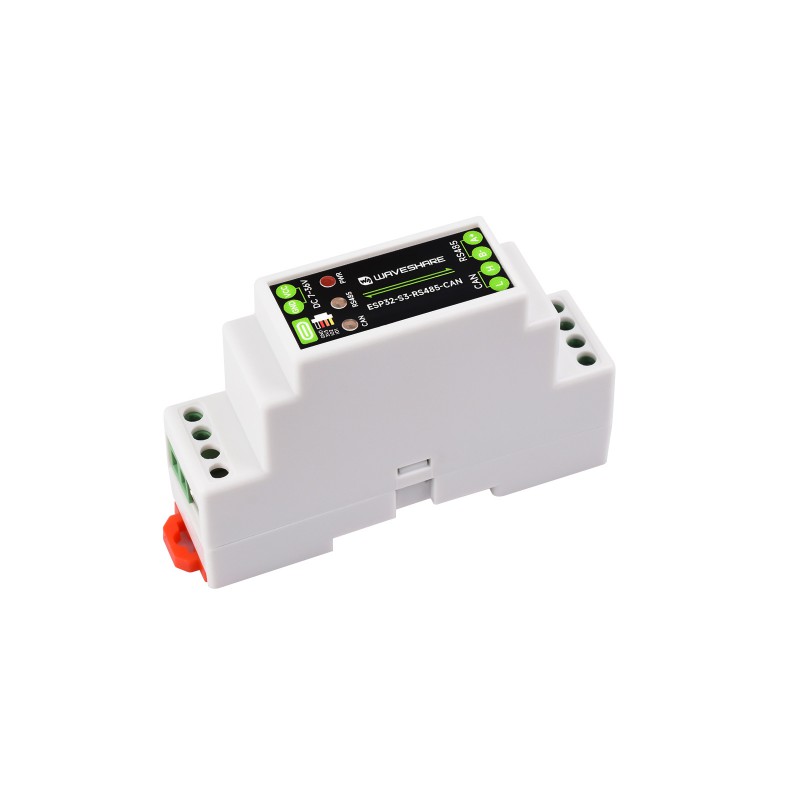

- Rail-mounted protective case, easy to install, safe to use
Application Scenario
HomeAssistant Integration for Goldline Control / Aqualogic and Heatpump MideaXYE
